| Brand Name : | VICUT |
| Model Number : | VCT-LCR |
| Certification : | CE, SGS, BV |
| Price : | negotiable according to order quantity |
| Delivery Time : | 7-15 working days upon payment |
| Payment Terms : | 50% deposit, payoff balance before shipping |
| Supply Ability : | 300sets/month |

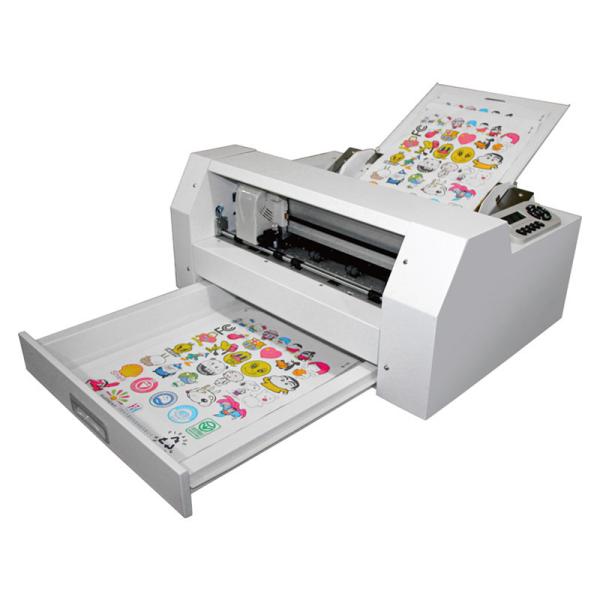

Sticker Cutting Machine, A3+Sheet Digital Label Die Cutter
Description:
Automatic Registration Mark System/Continuous Cutting & Sheet Feeding Automatically
Compatible with SignMaster software, the VICUT sheet cutter can read a unique barcode at the beginning of each sheet, thus, sheets with different cut jobs can be mixed.
The model VCT-LCSA3+ is a sheet fed label cutter, automatically cuts out stickers and similar media from sheets sized up to 330mm x 488mm, perfect match with standard A4 & A3 size.
Specifications:
| Model | LCS A3+I | LCSA3+II | LCSA3+III |
| Scan Device | Optical Sensor | Optical Sensor | Camera |
| Software | Coreldraw plugin | SignMaster Pro | Coreldraw plugin /SignMaster Pro |
| Scan Speed | 25seconds | 15 seconds | 5 seconds |
| Data Transfer | USB/SD | USB | USB/SD |
| Register mark type | crop mark | barcode+crop mark | dot mark /dot mark+QR code |
| Working Method | offline | Online | Offline(plugin)/online(signmaster) |
| Max. Cutting Speed | 960mm/s | ||
| Cutting Tool | cemented carbide blade | ||
| Cutting Method | Half Cut & Full Cut | ||
| Cutting Accuracy | 0.05mm | ||
| Material Thickness | 50-300gsm | ||
| Material Capacity | 80gsm paper, 120 sheets per time | ||
| Max. Force | 750g (3g/step) | ||
| Max. Media Length | 19’’/488mm | ||
| Max. Media Width | 13”/330mm | ||
| Encoder Signal | physical 1016 line/ round, logical 4064 line/round | ||
| N.W./G.W. | 45kg/65kg | ||
| Machine Dimension | 120x65x35cm(LxWxH) | ||
| Packing Size | 85x70x55cm/0.33cbm | ||
1. Lightweight space-saving design, servo motor control system.
2. Constant paper feeding mechanism ensure continuous multi-sheet
cutting.
3. Automatic paper feeding system delivers consistent thick paper
cutting with zero paper jams.
4. Optimized paper induction system to direct the paper status
automatically.
5. Unique mark system saves paper waste.
Details Description:
Servo motor: for more smooth motion and high speed, they require no regular maintenance.
USB and SD interface: you can input the cutting file with SD card or USB flash disc, and then cut the media directly without connection with PC.
USB line Slot: fix the USB line, avoid accidental slip.
SignMaster: support online work, it can generate outline automatically, and output the Mark Point automatically, realize continuously cut different patterns sheet because of unique bar code. Sheets with different cut jobs can be mixed. User intervention is not required.
Applications:
Material: Various printable self-adhesive materials can be used. Such as, Photo Paper, T-shirt Transfer Paper, Photo Quality Inkjet Card, Stickers, Glossy paper, Transparent Films, etc.
Field: Sheet label cutter VCT-LCSA3+ is the ideal machine for reliable and automatic production of contour-cut stickers and labels in the business areas of copy shops, product labeling, office applications and many others.
|
|
