| Brand Name : | VICUT |
| Model Number : | BC220 |
| Certification : | CE,BV,SGS,TUV |
| Price : | negotiable according to order quantity |
| Delivery Time : | 7-15 working days upon payment |
| Payment Terms : | 50% deposit, payoff balance before shipping |
| Supply Ability : | 300sets/month |
Fully automatic A4 size business card cutter for cutting name cards
Description:
1. Adjustable cut lengths and widths.
2. Cut mark registration compensates for image shift, to deliver
incredible accuracy!
3. Sheet edge sensing to set cut position.
4. Auto stack feeding or set number sheet feeding enables
automation of process.
5. Optional cutting system for creasing and cutting dotted line,
also avaiable for cutting different size cards on one sheet.
Specifications:
| Model | BC220 | BC330 |
| Paper Size | A4, A4+, | A3, A3+, SRA3, |
| Weight | Net weight: 14.8 kgs | Net weight: 19.8 kgs |
| Machine dimension | Unpacked: 46x54x26mm | Unpacked: 50x62x26mm |
| Longitudinal: cut by self sharpening slitting cassette | |
| Horizontal: cutting with a lateral cutter, cut by lateral guillotine cutte | ||
| Cutting Position Control | Front edge detection SmartMark (Cut Registration Mark) detection | |
| Paper feeding method | Dual roller auto-paper feeding tray | |
| Paper thickness | 0.25mm (180g/m²) - 0.35mm (350g/m²) | |
| Paper Capacity | Max.12 sheets (0.35mm thickness) or total thickness 3mm | |
| Output tray card capacity | 180g/m² 90×3 (pcs), 350g/m² 70×3 (pcs) | |
| Longitudinal: (89/85/90/95)mm, or customized | |
| Horizontal: (45/50/54)mm, or (1~600)mm, fully adjustable | ||
| Cutting speed | 8 seconds per SRA3 / 96 seconds for 250 business cards (85 x 55mm) | |
| Cutting accuracy | ±0.05mm | |
| Humidity | 35%~70% | |
| Operating temperature | -15℃~ +40℃ | |
| Power supply | AC 110~220V, 50/60HZ, 0.5A | |
This cutter with classical and tasteful design, the transverse
knife is made of imported superior brushless motor , supporting
super long time work and will guarantee the cutting of one million
pieces of papers.
1. Compact size, space-saving, easy operation.
2. Motherboard possesses full intelligence CPU control system, advanced SMT process and incomparable quality and performance.
3. Efficient and fast, such as: A4, 50sec/100sheets,
4. Accuracy, the electric eye can detect the position for cutting,
precision 100%

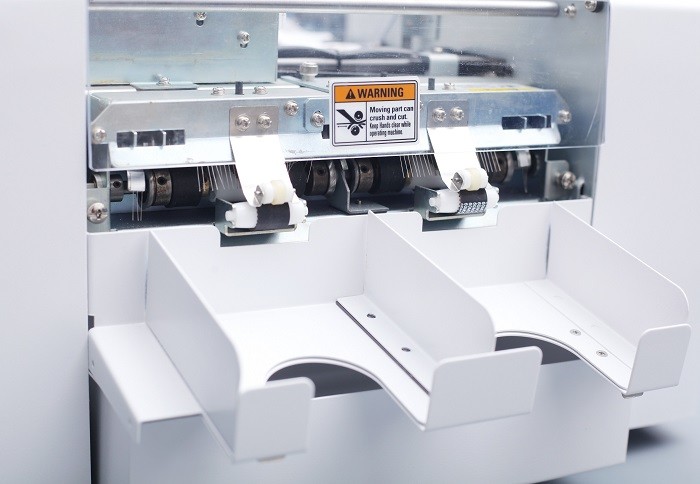

Details Parts
Transparent cover with auto power cut off.
User-friendly control panel
Self-sharpenning cutting wheels
Moveable waste collection tray.
Inserting cutting cassette, Plug and play, easy installation and
operation.
Applications:
Business cards, post cards, compliment cards, entrance tickets,
photos, and so on.
1. Fast cutting speed. Cuts 250 x cards from SRA3 sheets in
approximately 96 seconds!
2. Fixed or custom card sizes with a selection of interchangeable
cassettes. Different options for cutting width 85mm, 89mm, 90mm,
95mm.
3. Suitable for A3+, SRA3,A3 and A4 paper sheet sizes, capable for
cutting different business cards sizes all over the world.
4. Cuts up to 350gsm.
|
|
