| Brand Name : | VICUT |
| Model Number : | BC330 |
| Certification : | CE,BV,SGS,TUV |
| Price : | negotiable according to order quantity |
| Delivery Time : | 7-15 working days upon payment |
| Payment Terms : | 50% deposit, payoff balance before shipping |
| Supply Ability : | 300sets/month |

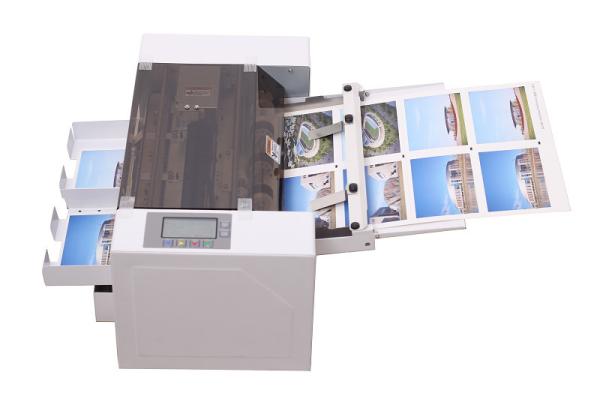

automatic heavy duty A3 size card cutter for cutting, crease and perforate name cards
Description:
1. Cut lengths and widths can be adjusted.
2. Cut mark registration compensates for image shift, gurantee incredible accuracy!
3. Sheet edge sensing to set cut position.
4. Auto stack feeding or set number sheets feeding enables automation of process.
5. Optional cutting system for creasing and cutting dotted line, also avaiable for cutting different size cards on one sheet.
| SPECIFICATIONS FOR CARD CUTTER | |
| Item | Detail |
| Model | CCA3 |
| Paper type | A3 |
| Card size | (85,89,90) x (45,50,54,90,127) |
| Cutting thickness | 0.18-0.40mm |
| Cutting speed | 50sec/100sheets |
| Cutting mode | Four sides of cut(Two knives, trimming) |
| Feed method | Dual friction feed |
| Machine size | A3: W720xD530xH260 |
| Machine weight | N.W/G.W:A3:19kgs/24kgs |
| Packing size | A3:66*48*38cm |
1. Fast cutting speed. Cuts 250 x cards from SRA3 sheets in
approximately 96 seconds!
2. Adjustable cut lengths and widths.
3. Cut mark registration compensates for image shift, to deliver
incredible accuracy!
4. Sheet edge sensing to set cut position.
5. Fixed or custom card sizes with a selection of interchangeable
cassettes. Different options for cutting width 85mm, 89mm, 90mm,
95mm.
6. Auto stack feeding or set number sheet feeding enables
automation of process.
7. Suitable for A3+, SRA3,A3 and A4 paper sheet sizes, capable for
cutting different business cards sizes all over the world.
8. Cuts up to 350gsm.
Details Parts
Transparent cover with auto power cut off.
User-friendly control panel

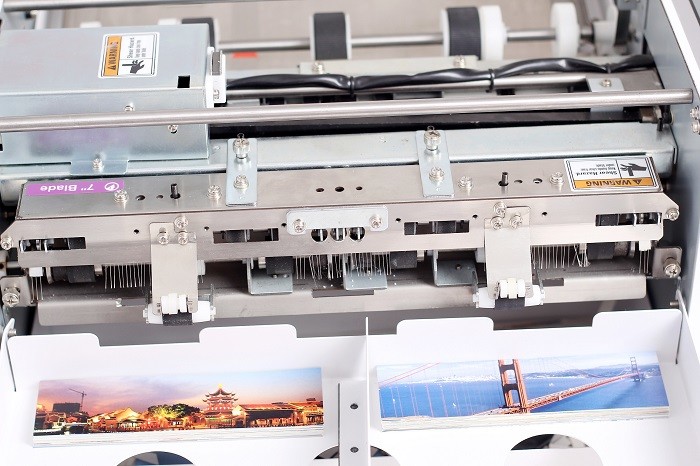

Self-sharpenning cutting wheels
Moveable waste collection tray.
Inserting cutting cassette, Plug and play, easy installation and
operation.
Applications:
Business cards, post cards, compliment cards, entrance tickets,
photos, and so on.
1. Fast cutting speed. Cuts 250 x cards from SRA3 sheets in
approximately 96 seconds!
2. Fixed or custom card sizes with a selection of interchangeable
cassettes. Different options for cutting width 85mm, 89mm, 90mm,
95mm.
3. Suitable for A3+, SRA3,A3 and A4 paper sheet sizes, capable for
cutting different business cards sizes all over the world.
4. Cuts up to 350gsm.
|
|
